Development and validation of a nomogram for predicting postoperative pulmonary complications in older patients undergoing noncardiac thoracic surgery: a prospective, bicentric cohort study

Abstract

Background

The ARISCAT score, a prospectively developed generic classification for postoperative pulmonary complications (PPCs), has shown excellent predictive performance in general surgery. However, there is no reliable classification instrument for PPCs prediciton in thoracic surgery.

Objective

This study aimed to develop and validate a novel nomogram for estimating the risk of pulmonary complications in older patients (≥ 65 years) within 30 days after NCTS.

Methods

A nomogram was developed using predefined candidate predictors of 30-day PPCs. It was fitted with least absolute shrinkage and selection operator and logistic regression methods. Internal validation was performed using a bootstrap-resampling approach, while external validation used an independent, temporally separated cohort. The model’s performance was assessed based on its discriminative potential (area under the receiver operating characteristic curve [AUC]), predictive ability (calibration plots), and clinical utility (net benefit).

Results

In the development (n = 1449) and validation (n = 449) cohorts, 34.9% and 31.4% of patients, respectively, developed pulmonary complications 30 days post-surgery. The final nomogram incorporated eight predictors (age, surgical approach, desaturation of < 92% for more than 2 min, duration of surgery, smoking status, FEV1/FVC%, respiratory infection in the last 30 days, and neoadjuvant chemotherapy). The nomogram showed excellent discrimination (AUC = 0.866, 95% confidence interval [CI], 0.846–0.885), calibration (Hosmer- Lemeshow test, P = 0.97) and overall performance (Brier score = 0.014) in the development cohort. Similar results were observed in the external validation cohort (AUC = 0.825, 95% CI, 0.786–0.864). A decision curve analysis indicated that the nomogram offers a positive net benefit compared with the ARISCAT and LAS VEGAS scores.

Conclusions

This novel nomogram can reliably identify older patients with a high risk for pulmonary complications within 30 days after NCTS.

Trial registration

ChiCTR2100051170.

Peer Review reports

Background

In 2022, China recorded over 1.3 million cases of thoracic cancer, particularly lung and esophageal cancer, with a significant proportion occurring in older patients (aged 65 and above) [1,2,3]. Surgical excision remains the best curative option for thoracic cancer [4]. Pulmonary complications are common and potentially fatal after thoracic surgery, with prevalence rates ranging from 20–60%, depending on definitions and patient populations [5,6,7]. Postoperative pulmonary complications (PPCs) contribute significantly to attributable morbidity, mortality, and healthcare costs, especially fin older patients [7,8,9,10].

Minimizing the risk of PPCs is crucial for patients scheduled for noncardiac thoracic surgery (NCTS). However, accurately identifying patients at intermediate and high risk of PPCs remains challenging, limiting the effectiveness of clinical guidance and targeted monitoring and preventive interventions [11]. Several prediction models for PPCs have been proposed. The “Assess Respiratory Risk In Surgical Patients In Catalonia” (ARISCAT) score, despite of the best-performing model, was derived from a broad demographic of surgical patients and specialties and may not accurately assess patients recovering from NCTS with specific risks (such as reduced lung parenchyma function, impaired mucociliary clearance, and pain-related inhibition of the respiratory muscles). Moreover, the ARISCAT score does not include intraoperative variables and has not been updated since its introduction in 2010, potentially underestimating contemporary morbidity [12]. Furthermore, external validation of the ARISCAT score in a trial based on a large European data registry showed varying performances across different geographic populations, raising concerns about its applicability to a Chinese population without specific validation [13]. Other predictive models have not been routinely adopted in thoracic surgery, primarily due to inconsistent outcome definitions, limited external validation, absence of one-lung ventilation (OLV)-related factors, and challenges in integrating stratified care into clinical practice [11, 14,15,16,17,18,19]. Additionally, a 2022 systematic review and external validation study revealed that few existing models had undergone external validation, and none showed acceptable performance. Specifically, none achieved a lower 95% confidence interval (CI) estimate for area under the receiver operating characteristics curve (AUC) of ≥ 0.7. All risk scores reported in the external validation were at a high or unclear risk of bias [11]. Subsequently, the same research group assessed the risk of PPCs in adults undergoing elective surgery using the GSU-Pulmonary Score; however, its superior performance was limited to abdominal surgery [20].

This study aims to develop and validate, both internally and externally, a novel nomogram for estimating the risk of pulmonary complications in older patients within 30 days after NCTS.

Methods

The study protocol was published before the analysis, and its deviations were documented in Supplementary Digital Content S1 [21].

Ethics

The study protocol adhered to the guidelines outlined in the Declaration of Helsinki and was approved by the Institutional Review Boards of the Guangzhou Institute of Cancer Research, the Affiliated Cancer Hospital, Guangzhou Medical University (IRB number 202111ZN), and the second Affiliated Hospital of Guangzhou University of Chinese Medicine (IRB number 202220001). All patients received verbal and written information about the study and the use of perioperative data during the preoperative anesthesia assessment, and provided written consent.

Perioperative management

Intraoperative management was at the discretion of the treating anesthesiologist according to institutional practice. A standardized institutional ERAS protocol was recommended for all patients, as described in previous studies [22]. As well, pre-rehabilitation strategies were prescribed to patients who were at intermediate- to high- risk based on ARISCAT scores [12].

Data acquisition

All preoperative and intraoperative data from the anesthesia Information System and patient records of the hospital were collected prospectively by independent investigators blinded to the outcome evaluation. The investigators collected routine, anonymized data without changing the clinical care pathways and uploaded them to the Epidata V.4.6 database. For the development cohort, we included patients aged 65 years and above who underwent NCTS with general anesthesia and OLV between 8 October, 2021 and 30 April, 2023 at the Guangzhou Institute of Cancer Research, the Affiliated Cancer Hospital, Guangzhou Medical University. For the external validation cohort, we analyzed eligible patients between 4 May, 2023 and 30 April, 2024 at the Second affiliated Hospital of Guangzhou University of Chinese Medicine. The exclusion criteria for both cohorts were an American Society of Anesthesiologists (ASA) physical status classification of 5, reoperation due to postoperative complications, scheduled postoperative admission to the intensive care unit (ICU), and a life expectancy of < 30 days due to extensive tumour metastasis. Patients who missed their follow-up appointments after surgery were also excluded.

We considered both preoperative (demographic characteristics and comorbidity status) and intraoperative predictor variables for the development of nomogram based on the investigators’ consensus on measurable variables and the results of previous study results [21]. A detailed questionnaire on predictor variables and definitions is provided in Supplementary Digital Content S2.

Outcomes

The primary outcome was the occurrence of pulmonary complications within 30 days after surgery. The following pulmonary complications, defined based on the Standardized Endpoints in Perioperative Medicine Core Outcome Measures in Perioperative and Anesthetic Care (StEP-COMPAC), were recorded: atelectasis, respiratory failure, acute respiratory distress syndrome, pneumonia, pleura effusion, contralateral pneumothorax, bronchospasm, aspiration pneumonitis, and unplanned or prolonged invasive mechanical ventilation [23]. Additionally, we included prolonged oxygen supplementation and chest tube-dwelling as thoracic surgery-specific complications (Supplementary Digital Content S3). From the day of surgery until postoperative day 30, patients were monitored daily by a trained registered nurse anesthetist, either at the bedside or by phone (if discharged). The secondary outcomes included postoperative length of hospital stay (LOS) and 30-day and 90-day mortality.

Sample size

Based on previous literature and a retrospective study at our center, the anticipated incidence of 30-day PPCs in a mixed cohort of older patients undergoing thoracic procedures was approximately 40% [24, 25]. To estimate the required sample size for a logistic regression model, we followed the principle of 10 events per variable (EPV). Initially, we aimed for a development cohort of at least 1000 patients. However, once this target sample size was reached, the observed incidence of 33.6% was lower than expected, resulting in an effective EPV value of approximately 7.6. Consequently, we adjusted the sample size in the development cohort to at least 1440 patients based on the observed incidence and an EPV value of 10, while accounting for a 10% attrition rate. For external validation, assuming an AUC of 0.8 and a 30% outcome rate, we determined that 440 patients would be needed, accounting for the 10% attrition rate [26].

Statistical analyses

The categorical characteristics of the participants in the development and validation cohorts were compared using Pearson’s Chi-squared test, Fisher’s exact test, or Kruskal-Wallis test. Differences in continuous variables between cohorts were evaluated using an independent Student’s t-test or Wilcoxon rank-sum test, depending on the normality of the data. All hypothesis tests were two-tailed, with a priori significance set at P < 0.05.

For the initial assessment of unadjusted associations between potential predictor variables and PPCs, univariable logistic regression analyses were conducted. Collinearity was assessed using the variance inflation factor (VIF). In cases of collinearity among a few variables, clinical judgement was applied to select the most relevant variables for inclusion in the multiple regression model. Variables with P-values < 0.05 in the unadjusted univariable logistic models were retained for further consideration. The selected predictor variables were then analysed using the least absolute shrinkage and selection operator (LASSO) regression algorithm, with 10-fold cross-validation employed to determine the optimal tuning parameters (λ). Then, the most significant variables identified by the LASSO regression from the development dataset were used in multivariable logistic regression analyses to develop the most parsimonious model (i.e., easy to use). Finally, predictor variables with P-values < 0.05 in the multivariable logistic regression were incorporated into a nomogram to estimate the probability of PPCs. After constructing the nomogram, internal and external validations were performed in the development and validation cohorts, respectively. Internal validation of the nomogram was assessed using the bootstrap resampling technique with 1000 repetitions. For each bootstrap sample, we refitted and tested the nomogram on the development set to estimate predictive accuracy and correct for bias. To strengthen the generalisability of the nomogram, we conducted temporal external validation using an independent cohort.

Once derived, the predictive performance of the nomogram in both the development and validation cohorts was evaluated using recommended best practices. Nomogram discrimination was assessed using the AUC (mean, 95% CI), with a value > 0.8 indicating strong discrimination. We further calibrated the nomogram using a calibration plot. The Hosmer-Lemeshow test with a P value > 0.05 indicates good calibration. The overall accuracy of the nomogram was measured using the Brier score. Additionally, a decision curve analysis was conducted to evaluate the net benefit of the nomogram, considering the value and consequences of interventions based on the predictions. These results were compared with the performance of the previously published ARISCAT and Local ASsessment of VEntilatory management during General anesthesia (LAS VEGAS) scores in the overall cohort.

In the exploratory analyses, we examined the association between PPCs and other outcomes, including postoperative LOS and 30-day and 90-day mortality. We used the Mann-Whitney U test to compare postoperative LOS between patients with and without PPCs. The Kruskal-Wallis test was used to compare postoperative LOS across groups according to the number of PPCs (0, 1, 2–3, or ≥4). The Mantel-Haenszel test was used to analyse trends in 30-day and 90-day mortality in the groups based on the number of PPCs.

All analyses were conducted using R statistics V.4.2.2 (R Project for Statistical Computing).

Data processing and missing data

We applied several validated preprocessing algorithms to each patient’s electronic case report forms (eCRFs) and medical records containing heterogeneous variables to address outliers, missing values, and normalization. Data on the primary outcome were complete for all participants. Our prespecified approach was to conduct a complete case analysis for predictor variables with missing values ≤ 5%. Predictor variables with missing values > 5% were excluded from the main analysis. For predictor variables < 5% missing values, we used random forest imputation with the missForest package to handle missing data. The proportions of missing values for potential predictors are reported in Supplementary Digital Table S1.

Quality assurance

To assess the quality of the patient recruitment process and data collection, an independent observer audited the CRFs of a random sample of 190 patients (10% of the overall cohort) from both centers. In each center, the number of patients audited was proportional to the number of patients recruited, with 145 patients audited from the development center and 45 patients from the validation center. This audit confirmed that the eligibility criteria were applied correctly. The data sample included 85 items per patient, covering all predictors and outcomes used in the model. The audited identified 183 instances (1.13% of the audited data) of missing data or errors, primarily involving continuous variables for the OLV period. General training sessions were held to instruct the investigators on how to complete the structured questionnaire and to identify the PPCs recorded in the charts.

Results

Study population

We assigned 1655 patients aged 65 and above, who underwent NCTS between 8 October, 2021 and 30 April, 2023, to the development cohort. In total, 35 patients who declined enrollment, 4 who required additional surgery during the follow-up, 25 who were scheduled for postoperative ICU admission, 2 with life expectancy of < 30 days, and 340 with missing information, were excluded. For the external validation cohort, we identified 523 patients aged 65 and above who underwent NCTS from 4 May, 2023 to 30 April, 2024. In total, 12 patients who declined enrollment, 2 who underwent additional surgery during the follow-up, 7 who were scheduled for postoperative ICU admission, 1 with a life expectancy of < 30 days, and 173 with missing information, were excluded. The final development and validation cohorts comprised 1449 and 449 patients, respectively. The flowchart of study is shown in Fig. 1.

Fig. 1
figure 1

Study flowchart. NCTS, noncardiac thoracic surgery; ICU, intensive care unit; PPCs, postoperative pulmonary complications

Patient demographics and clinical characteristics were generally comparable in both the development and validation cohorts (Supplementary Digital Table S2). No differences were observed in the incidence of a composite of PPCs or any component of PPCs between the cohorts (Supplementary Digital Table S3).

Proposed nomogram for PPCs

The results of the LASSO regression analysis of the independent variables are provided in Supplementary Digital Table S4. Some significant variables, such as duration of anesthesia and OLV, were excluded due to high collinearity with duration of surgery, as indicated by the VIF values (Supplementary Digital Table S5). Preoperative SpO2 < 95%, functional status, asthma, fluid therapy, ventilation mode, and the fraction of inspired oxygen showed no significant association with PPCs (P > 0.05) (Supplementary Digital Table S6). Finally, eight predictors were selected based on non-zero coefficients from the LASSO regression analysis (Supplementary Digital Fig. S1a-b).

Moreover, eight independent predictor variables of PPCs—age, surgical approach, desaturation of < 92% for more than 2 min, duration of surgery, smoking status, FEV1/FVC%, respiratory infection in the last 30 days, and neoadjuvant chemotherapy—were identified using multivariable logistic regression. The adjusted odds ratios and coefficients for these variables are shown in Table 1.

Table 1 Final multivariable model of predictor variables associated with postoperative pulmonary complications in the development cohort

Figure 2 shows the proposed nomogram, which incorporates eight variables with 14 attributes. Each attribute within these variables was assigned a score on the point scale. By summarizing each score, the corresponding probability of PPCs can be determined from the nomogram.

Fig. 2
figure 2

Derived nomogram. FEV1, forced expiration volume in 1 second; FVC, forced volume capacity; PPCs, postoperative pulmonary complications. VATS, video-assisted thoracic surgery; RATS, robotic-assisted thoracic surgery

Nomogram performance in the development cohort

The nomogram exhibited strong discrimination with an AUC value of 0.866 (95% CI: 0.846–0.885) (Fig. 3a). Calibration plots showed good calibration across the range of predicted and observed incidence of PPCs (Hosmer–Lemeshow test, P = 0.97) (Supplementary Digital Fig. S2a). The decision curve analysis showed a net benefit across predicted probability thresholds ranging form 0–92% (Fig. 4a). The scaled Brier score was 0.014 (95% CI: 0.013–0.015). Internal validation with 1000 bootstrap resampling analyses revealed strong discrimination (mean AUC = 0.862, 95% CI: 0.841–0.882) (Supplementary Digital Fig. S3).

Fig. 3
figure 3

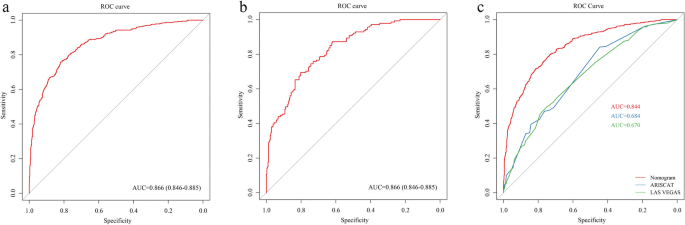

Discriminative ability of the nomogram (Red) in the development cohort (a), external validation cohort (b), and in comparison with the ARISCAT (Blue) and LAS VEGAS (Green) scores (c). ROC, receiver operating characteristic; AUC, area under the ROC curve; ARISCAT, Assess Respiratory Risk In Surgical Patients In Catalonia; LAS VEGAS, Local ASsessment of VEntilatory management during General AneSthesia

Fig. 4
figure 4

Decision curve analysis (DCA) plots of the nomogram (Red) in the development cohort (a), external validation cohort (b), and in comparison with the ARISCAT (Blue) and LAS VEGAS (Green) scores (c). PPCs, postoperative pulmonary complications; ARISCAT, Assess Respiratory Risk In Surgical Patients In Catalonia; LAS VEGAS, Local ASsessment of Ventilatory management during General AneSthesia

Nomogram performance in the external validation cohort

The external validation of the nomogram consistently revealed strong discrimination, with an AUC value of 0.825 (95% CI: 0.786–0.864) (Fig. 3b) and good calibration (Hosmer–Lemeshow test, P = 0.160) (Supplementary Digital Fig. S2b). The decision curve analysis indicated a net benefit across predicted probability thresholds ranging from 0–99% (Fig. 4b). The scaled Bier score was 0.015 (95% CI: 0.013–0.017).

Nomogram performance compared with the ARISCAT and LAS VEGAS scores

In the overall cohort, the nomogram outperformed the ARISCAT and LAS VEGAS scores. The AUC for the nomogram was 0.844, while the AUCs for the ARISCAT and LAS VEGAS scores were 0.689 and 0.672, respectively, with a statistically significant difference (P < 0.001) (Fig. 3c). Moreover, the nomogram showed a more significant net benefit compared to both scores across predicted probability thresholds in the decision curve analysis (Fig. 4c).

Exploratory analyses

A total of 1338 PPCs were recorded in 647 patients (34.1%). Atelectasis was the most common complication (15.6%), followed by prolonged chest tube-dwelling (13.4%) and pneumonia (13.3%) (Supplementary Digital Table S3). The highest incidence of PPCs was observed after esophagectomy (51.3%), followed by lobectomy (36.9%), segmentectomy (27%), mediastinal tumour and pericardium resection (19.1%), and wedge resection (16.8%). In absolute terms, lobectomy was associated with the highest number of complications. Detailed information on the characteristics of PPCs and mortality by specialty is presented in Supplementary Digital Table S7. Postoperative LOS, unexpected ICU admission, and mortality increased significantly with the number of PPCs (Table 2).

Table 2 Postoperative LOS, ICU admission, and mortality according to the number of PPCs

Discussion

In this prospective cohort study of older patients undergoing NCTS, we developed and validated a risk prediction nomogram for PPCs. The nomogram showed excellent predictive performance in the development cohort (AUC = 0.866, accurate calibration based on observed vs. estimated risk across the risk spectrum). Furthermore, it maintained its performance in the external validation cohort (AUC = 0.825). Altogether, this novel nomogram reliably identifies older patients at high risk for pulmonary complications within 30 days post-NCTS.

PPCs are critical clinical concerns, as thoracic surgery continues to increase in frequency, even beyond the coronavirus disease 2019 (COVID-19) era [11, 27]. Research indicates that even mild PPCs, such as atelectasis, pleural effusion, or even prolonged oxygen supplementation, are associated with increased adverse outcomes [10]. OLV, which by itself is associated with volutrauma, barotrauma, and atelactrauma, usually occurs with other damaging conditions, such as direct surgical injury, ischemia-reperfusion, and surfactant loss [8, 24]. Older patients are more susceptible to pulmonary complications after thoracic surgery due to their age, existing comorbidities, and frailty [28]. The prediction of multifactorial outcomes, such as PPCs, remains challenging despite their commonality and clinical significance in modern surgery [29]. As stated above, existing predictive models have substantial limitations, which motivate our study to design a parsimonious nomogram specifically for older patients at a high risk of pulmonary complications after NCTS. The nomogram achieved superior accuracy compared to the ARISCAT and LAS VEGAS scores, indicating that the performance of PPCs risk models may vary in accuracy depending on the procedure, patient population, institutions, and regions other than those for which they were originally developed.

Consistent with previous findings, we observed modifiable and non-modifiable risk factors independently associated with the development of PPCs [12, 14,15,16,17,18,19]. Although these factors have been noted in previous studies, their relative impact on outcomes varied, providing a more specific and contemporary measure of their relevance in the studied setting. Despite the potential for biases and methodological concerns in the derivation of the models, the most frequently highlighted variables were those with the most significant clinical significance [30]. Non-modifiable factors, such as age, FEV1/FVC%, and respiratory infection in the last 30 days, were strongly associated with PPCs, emphasizing the need for enhanced pre-rehabilitation targeting these factors [20, 27, 31, 32]. Modifiable factors, including smoking status, duration of surgery, and intraoperative hypoxemia, offer an opportunity to validate multidisciplinary approaches, such as the early identification of high-risk patients and effective prevention strategies [25, 27].

Some of the predictors we identified may be unrelated to PPCs risk. For example, thoracotomy, associated with higher levels of invasiveness and pain, might explain the increased risk of PPCs through physiological mechanisms [27]. Nevertheless, there remains specific controversy as to whether robotic-assisted thoracic surgery (RATS) provides any measurable clinical advantages to patients when compared with video-assisted thoracic surgery (VATS) [33]. Recent publications from several randomized clinical trials on the effect of the RATS approach on clinical outcomes have shown promising results [34, 35]. The RAVAL trial found that the RATS approach improved early postoperative outcomes, as measured using the health utility index (7 and 12 weeks) compared to the VATS approach after lobectomy [34]. Similarly, the RVlob trial revealed a statistically significant reduction in pain intensity at Week 4 following RATS lobectomy compared to VATS lobectomy, although the clinical significance was limited [35]. Furthermore, the early results of the RAMIE trial indicated that the RATS approach could achieve significantly shorter surgical duration and better lymph node dissection in patients undergoing esophagectomy compared to the VATS approach, potentially leading to improved postoperative outcomes [36].

Neoadjuvant chemotherapy can cause damage to alveolar epithelial cell and pulmonary interstitial, which may increase the patient’s risk of respiratory complications after surgery [37]. Consistent with this, neoadjuvant chemotherapy emerged as a predictor of PPCs after adjusting for covariates. Notably, 90% of patients in the overall cohort who received neoadjuvant chemotherapy were also treated with immunotherapy. This treatment might further contribute to surgical morbidity, presumably because immunotherapy is associated with tumour-related inflammation and pulmonary fibrosis [38]. Consistent with previous work, we observed a strong association between neoadjuvant chemoimmunotherapy and hypoxemic acute respiratory failure, an association likely reinforced by the more prolonged surgical procedures [38]. However, further research is needed to explore on the relationship between chemoimmunotherapy and PPCs after NCTS.

Moreover, it is essential to consider unaccounted confounders or collinearity that are not included in our model. For example, ASA classification did not appear in the final model, likely due to the homogeneity of our sample, with over 75% of patients having ASAII. Although ASA classification can provide certain insight into a patient’s overall health status, it lacks specificity and objectivity. Accurate prediction requires comprehensive tools that address patient- and procedure-specific factors. Additionally, our study found no significant correlation between ventilatory settings and PPCs, likely because most of the population followed a lung-protective ventilation protocol recommended in thoracic surgery [24]. The patient population in our study was relatively fit and had largely preserved lung function, which is noteworthy due to the suggestion that patients with poor respiratory function may benefit more from personalized lung-protective ventilation management than those with better preoperative status [12, 13, 39].

Several aspects of our study enhance its clinical relevance. First, to the best of our knowledge, this is the first prospective study to develop and externally validate a nomogram specifically for predicting the probability of PPCs in older patients undergoing NCTS. Second, our nomogram includes easily assessed intraoperative variables, a critical distinction from most previous models that typically focused solely on preoperative predictors. Third, the based our definition of PPCs on StEP-COMPAC, which has reached consensus as a new global standard, ensuring that our analyses are relevant for future perioperative practice and research. Furthermore, we incorporated prolonged oxygen supplementation and chest tube-dwelling as specific complications of thoracic surgery, facilitating a comprehensive evaluation of postoperative outcomes. Last, although prior models have often assessed the development of pulmonary complications within 5 or 7 days post-surgery, our study extended the evaluation to 30 days, aligning with evidence that the risk of PPCs remains elevated during the first 30 days in patients recovering from surgery [20, 40].

Nevertheless, our study has several significant limitations. First, the sample size was insufficient to adequately develop a multivariable regression model with 44 predictor variables. To address this, we combined LASSO regression with logistic regression to avoid overfitting and to develop a parsimonious model. Second, our bicentric cohort likely represents the population undergoing thoracic surgery in southern China. However, our results may not be transportable to other regions due to demographic variations, comorbidity, and surgical profiles. However, this concentration also meant that the study had fewer missing data and a more flexible and closer fit for the local population. Third, non-modifiable predictors in this model, such as age, smoking status, and certain comorbidities, are inherently unchangeable. The reliance on these non-modifiable predictors presents a significant limitation in its clinical application. They provide a fixed risk profile that can inform clinicians about the likelihood of PPCs but do not offer actionable avenues for reducing risk. Nevertheless, the model can still serve valuable roles in clinical settings in terms of risk stratification, research catalyst, integration with other tools, and informing policy and guidelines. Fourth, there is always a possibility of unrecognized confounding factors, such as severe acute respiratory syndrome coronavirus 2 (SARS-CoV-2) infection, which is an important covariate unaccounted for in our model [11]. Despite high community infection rates, overall perioperative SARS-CoV-2 infection rates have remained low. In our study, elective surgeries were postponed for at least four weeks after COVID-19 diagnosis. Even in the case of a few undetected SARS-CoV-2 infections, the individual risk of PPCs is likely lower in the omicron-variant era among vaccinated patients [20]. In summary, the absolute risk of pulmonary sequelae of COVID-19 and its impact on the discriminative ability of the model are likely minimal. Fifth, our study did not evaluate the interactions between surgical specialties and other factors in the model, although the interaction of model performance with specialty is important for patients. It remains unclear whether the model components vary with surgical specialties. While specific tools may be highly accurate for narrowly defined groups, but they become impractical when multiple tools are required for each patient. Sixth, the sample size for external validation was relatively small, and further external validation studies based on larger, multicluster datasets would be ideal. Finally, despite employing advanced statistical methods, our observational study could not establish definitive etiological relationships.

Conclusions

The novel nomogram, based on eight routinely accessible variables, demonstrates excellent discriminative performance in assessing the risk of PPCs for older patients undergoing NCTS. This tool will assist clinicians in obtaining informed consent, formulating shared decision-making, and improving patient-centered outcomes.

Data availability

All individual de-identified participant data collected in this study can be available to investigators whose proposed use of the data has been approved by an independent committee. Proposals, with a signed data access agreement, should be directed to 1575041594@qq.com.

Abbreviations

PPCs:

Postoperative pulmonary complications

NCTS:

Noncardiac thoracic surgery

ASA:

American Society of Anesthesiologists

ARISCAT:

Assess Respiratory Risk In Surgical Patients In Catalonia

LAS VEGAS:

Local ASsessment of VEntilatory management during General AneSthesia

RATS:

Robotic assisted thoracic surgery

VATS:

Video assisted thoracic surgery

OLV:

One lung ventilation

FEV1 :

Forced expiratory volume in 1 second

FVC:

Forced vital capacity

LOS:

Length of hospital stay

ICU:

Intensive care unit

aOR:

Adjusted odds ratio

CI:

Confidence interval

AUC:

Area under the receiver operating characteristic curve

DCA:

Decision curve analysis

LASSO:

Least absolute shrinkage and selection operator

VIF:

Variance inflation factors

References

  1. Han B, Zheng R, Zeng H, Wang S, Sun K, Chen R, et al. Cancer incidence and mortality in China, 2022. Journal of the National Cancer Center. 2024;4:47–53.

    Article  PubMed  PubMed Central  Google Scholar

  2. Gao S, Li N, Wang S, Zhang F, Wei W, Li N, et al. Lung Cancer in People’s Republic of China. Journal of Thoracic Oncology: Official Publication of the International Association for the Study of Lung Cancer. 2020;15:1567–76.

    Article  PubMed  Google Scholar

  3. Shelley BG, McCall PJ, Glass A, Orzechowska I, Klein AA, the Association of Cardiothoracic anesthesia and collaborators. Association between anaesthetic technique and unplanned admission to intensive care after thoracic lung resection surgery: the second Association of Cardiothoracic anesthesia and Critical Care (ACTACC) National Audit. Anaesthesia. 2019;74:1121–9.

  4. Gao S, Li N, Wang S, Zhang F, Wei W, Li N, et al. Rates of Guideline-Concordant Surgery and Adjuvant Chemotherapy Among Patients With Early-Stage Lung Cancer in the US ALCHEMIST Study (Alliance A151216). JAMA Oncology. 2022;8:717–28.

    Article  Google Scholar

  5. de la Gala F, Piñeiro P, Reyes A, Vara E, Olmedilla L, Cruz P, et al. Postoperative pulmonary complications, pulmonary and systemic inflammatory responses after lung resection surgery with prolonged one-lung ventilation. Randomized controlled trial comparing intravenous and inhalational anaesthesia. British Journal of Anaesthesia. 2017;119:655–63.

  6. Li XF, Jin L, Yang JM, Luo QS, Liu HM, Yu H. Effect of ventilation mode on postoperative pulmonary complications following lung resection surgery: a randomised controlled trial. Anaesthesia. 2022;77:1219–27.

    Article  PubMed  Google Scholar

  7. Ferrando C, Carramiñana A, Piñeiro P, Mirabella L, Spadaro S, Librero J, et al. Individualised, perioperative open-lung ventilation strategy during one-lung ventilation (iPROVE-OLV): a multicentre, randomised, controlled clinical trial. The Lancet Respiratory Medicine. 2024;12:195–206.

    Article  CAS  PubMed  Google Scholar

  8. Miskovic A, Lumb AB. Postoperative pulmonary complications. British Journal of Anesthesia. 2017;118:317–34.

    Article  CAS  Google Scholar

  9. Campos NS, Bluth T, Hemmes SNT, Librero J, Pozo N, Ferrando C, et al. Intraoperative positive end-expiratory pressure and postoperative pulmonary complications: a patient-level meta- analysis of three randomised clinical trials. British Journal of Anaesthesia. 2022;128:1040–51.

    Article  PubMed  Google Scholar

  10. Fernandez-Bustamante A, Frendl G, Sprung J, Kor DJ, Subramaniam B, Martinez Ruiz R, et al. Postoperative Pulmonary Complications, Early Mortality, and Hospital Stay Following Noncardiothoracic Surgery: A Multicenter Study by the Perioperative Research Network Investigators. JAMA Surg. 2017;152:157–66.

    Article  PubMed  PubMed Central  Google Scholar

  11. Kouli O, Murray V, Bhatia S, Cambridge W, Kawka M, Shafi S, et al. Evaluation of prognostic risk models for postoperative pulmonary complications in adult patients undergoing major abdominal surgery: a systematic review and international external validation cohort study. The Lancet Digital Health. 2022;4:e520-31.

    Article  Google Scholar

  12. Canet J, Gallart L, Gomar C, Paluzie G, Vallès J, Castillo J, et al. Prediction of postoperative pulmonary complications in a population-based surgical cohort. Anesthesiology. 2010;113:1338–50.

    Article  PubMed  Google Scholar

  13. Mazo V, Sabaté S, Canet J, Gallart L, de Abreu MG, Belda J, et al. Prospective external validation of a predictive score for postoperative pulmonary complications. Anesthesiology. 2014;121:219–31.

    Article  PubMed  Google Scholar

  14. Kor DJ, Lingineni RK, Gajic O, Park PK, Blum JM, Hou PC, et al. Predicting risk of postoperative lung injury in high-risk surgical patients: a multicenter cohort study. Anesthesiology. 2014;120:1168–81.

    Article  PubMed  Google Scholar

  15. Neto AS, da Costa LGV, Hemmes SNT, Canet J, Hedenstierna G, Jaber S, et al. The LAS VEGAS risk score for prediction of postoperative pulmonary complications: An observational study. European Journal of Anaesthesiology. 2018;35:691–701.

    Article  PubMed  PubMed Central  Google Scholar

  16. Lukannek C, Shaefi S, Platzbecker K, Raub D, Santer P, Nabel S, et al. The development and validation of the Score for the Prediction of Postoperative Respiratory Complications (SPORC-2) to predict the requirement for early postoperative tracheal re-intubation: a hospital registry study. Anaesthesia. 2019;74:1165–74.

    Article  CAS  PubMed  PubMed Central  Google Scholar

  17. Zhou C-M, Xue Q, Li H, Yang J-J, Zhu Y. A predictive model for post-thoracoscopic surgery pulmonary complications based on the PBNN algorithm. Sci Rep. 2024;14:7035.

    Article  CAS  PubMed  PubMed Central  Google Scholar

  18. Li P, Gao S, Wang Y, Zhou R, Chen G, Li W, et al. Utilising intraoperative respiratory dynamic features for developing and validating an explainable machine learning model for postoperative pulmonary complications. British Journal of Anaesthesia. 2024;132:1315–26.

    Article  PubMed  Google Scholar

  19. Khanna AK, Kelava M, Ahuja S, Makarova N, Liang C, Tanner D, et al. A nomogram to predict postoperative pulmonary complications after cardiothoracic surgery. The Journal of Thoracic and Cardiovascular Surgery. 2023;165:2134–46.

    Article  PubMed  Google Scholar

  20. NIHR Global Health Research Unit on Global Surgery; STARSurg Collaborative. A prognostic model for use before elective surgery to estimate the risk of postoperative pulmonary complications (GSU-Pulmonary Score): a development and validation study in three international cohorts. Lancet Digit Health 2024;6:e507–19.

  21. Wei W, Zheng X, Zhou CW, Zhang A, Zhou M, Yao H, et al. Protocol for the derivation and external validation of a 30-day postoperative pulmonary complications (PPCs) risk prediction model for elderly patients undergoing thoracic surgery: a cohort study in southern China. BMJ Open. 2023;13:e066815.

    Article  PubMed  PubMed Central  Google Scholar

  22. Batchelor TJP, Rasburn NJ, Abdelnour-Berchtold E, Brunelli, A., Cerfolio, R. J., Gonzalez, et al. Guidelines for enhanced recovery after lung surgery: recommendations of the Enhanced Recovery After Surgery (ERAS®) Society and the European Society of Thoracic Surgeons (ESTS). Eur J Cardiothorac Surg. 2019;55(1):91-115.

  23. Abbott TEF, Fowler AJ, Pelosi P, Gama De Abreu M, Møller AM, Canet J, et al. A systematic review and consensus definitions for standardised end-points in perioperative medicine: pulmonary complications. British Journal of Anaesthesia. 2018;120:1066–79.

  24. Park M, Ahn HJ, Kim JA, Yang M, Heo BY, Choi JW, et al. Driving Pressure during Thoracic Surgery: A Randomized Clinical Trial. Anesthesiology. 2019;130:385–93.

    Article  PubMed  Google Scholar

  25. Agostini P, Cieslik H, Rathinam S, Bishay E, Kalkat MS, Rajesh PB, et al. Postoperative pulmonary complications following thoracic surgery: are there any modifiable risk factors? Thorax. 2010;65:815–8.

    Article  CAS  PubMed  Google Scholar

  26. Riley RD, Debray TPA, Collins GS, Archer L, Ensor J, van Smeden M, et al. Minimum sample size for external validation of a clinical prediction model with a binary outcome. Stat Med. 2021;40:4230–51.

    Article  PubMed  Google Scholar

  27. Odor PM, Bampoe S, Gilhooly D, Creagh-Brown B, Moonesinghe SR. Perioperative interventions for prevention of postoperative pulmonary complications: systematic review and meta-analysis. BMJ. 2020;368:m540.

    Article  PubMed  PubMed Central  Google Scholar

  28. Veluswamy RR, Whittaker Brown S-A, Mhango G, Sigel K, Nicastri DG, Smith CB, et al. Comparative Effectiveness of Robotic-Assisted Surgery for Resectable Lung Cancer in Older Patients. Chest. 2020;157:1313–21.

    Article  PubMed  Google Scholar

  29. Shah N, Hamilton M. Clinical review: Can we predict which patients are at risk of complications following surgery? Crit Care. 2013;17:226.

    Article  PubMed  PubMed Central  Google Scholar

  30. Nijbroek SG, Schultz MJ, Hemmes SNT. Prediction of postoperative pulmonary complications. Curr Opion Anaesthesiol. 2019;32:443–51.

    Article  Google Scholar

  31. Cao C, Louie BE, Melfi F, Veronesi G, Razzak R, Romano G, et al. Impact of pulmonary function on pulmonary complications after robotic-assisted thoracoscopic lobectomy. Eur J Cardiothorac Surg. 2020;57:338–42.

    Article  PubMed  Google Scholar

  32. Zheng Y, Mao M, Li F, Wang L, Zhang X, Zhang X, et al. Effects of enhanced recovery after surgery plus pulmonary rehabilitation on complications after video-assisted lung cancer surgery: a multicentre randomised controlled trial. Thorax. 2023;78:574–86.

    Article  PubMed  Google Scholar

  33. Veronesi G, Novellis P, Voulaz E, Alloisio M. Robot-assisted surgery for lung cancer: State of the art and perspectives. Lung Cancer. 2016;101:28–34.

    Article  PubMed  Google Scholar

  34. Patel YS, Baste J-M, Shargall Y, Waddell TK, Yasufuku K, Machuca TN, et al. Robotic Lobectomy Is Cost-effective and Provides Comparable Health Utility Scores to Video-assisted Lobectomy: Early Results of the RAVAL Trial. Annals of Surgery. 2023;278:841–9.

    PubMed  Google Scholar

  35. Jin R, Zhang Z, Zheng Y, Niu Z, Sun S, Cao Y, et al. Health-Related Quality of Life Following Robotic-Assisted or Video-Assisted Lobectomy in Patients With Non-Small Cell Lung Cancer. CHEST. 2023;163:1576–88.

    Article  PubMed  Google Scholar

  36. Yang Y, Li B, Yi J, Hua R, Chen H, Tan L, et al. Robot-assisted Versus Conventional Minimally Invasive Esophagectomy for Resectable Esophageal Squamous Cell Carcinoma: Early Results of a Multicenter Randomized Controlled Trial: the RAMIE Trial. Annals of Surgery. 2022;275:646–53.

    Article  PubMed  Google Scholar

  37. Leo F, Pelosi G, Sonzogni A, Chilosi M, Bonomo G, Spaggiari L. Structural lung damage after chemotherapy fact or fiction? Lung Cancer. 2010;67:306–10.

    Article  PubMed  Google Scholar

  38. Ugalde Figueroa P, Lacroix V, Van Schil PE. Neoadjuvant Chemoimmunotherapy Complicates Subsequent Surgical Resection and Adjuvant Immunotherapy Is Preferable From the Surgical Standpoint. Journal of Thoracic Oncology. 2024;19:858–61.

    Article  CAS  PubMed  Google Scholar

  39. Shelley B, Marczin N. Do we have the ‘power’ to ‘drive’ down the incidence of pulmonary complications after thoracic surgery. British Journal of Anaesthesia. 2023;130:e37-40.

    Article  PubMed  Google Scholar

  40. Elefterion B, Cirenei C, Kipnis E, Cailliau E, Bruandet A, Tavernier B, et al. Intraoperative Mechanical Power and Postoperative Pulmonary Complications in Noncardiothoracic Elective Surgery Patients: A 10-Year Retrospective Cohort Study. Anesthesiology. 2024;140:399–408.

    Article  PubMed  Google Scholar

Download references

Acknowledgements

The authors wish to acknowledge the following collaborators: the departments of Thoracic Surgery of Guangzhou Institute of Cancer Research, the Affiliated Cancer Hospital, Guangzhou Medical University, and the Department of Anesthesiology of the second Affiliated Hospital of Guangzhou University of Chinese Medicine, and Mr. Tao Jiang for data management. We would like to thank Editage (www.editage.cn) for English language editing. Our special gratitude goes to all the participants in the study.

Guarantor

Wei Wei, M.D. Department of Anesthesiology, Guangzhou Institute of Cancer Research, the Affiliated Cancer Hospital, Guangzhou Medical University. 78 Hengzhigang Road, Guangzhou, 510095, China. E-mail:1575041594@qq.com.

Funding

This work was supported by the 5555 clinical research project from Guangzhou Institute of Cancer Research, the Affiliated Cancer Hospital, Guangzhou Medical University (2023); the joint project by Guangzhou City and Guangzhou Medical University (SL2022A030); and the Guangdong Provincial Medical Science and Technology Foundation (B2023055).

Author information

Authors and Affiliations

Authors

Contributions

YX Z: Conceptualization, Methodology, Formal analysis, Writing – original draft. W W: Conceptualization, Methodology, Formal analysis, Writing – review & editing, Visualization, Funding acquisition. HY W: Methodology, Writing – review & editing, Supervision. YH Y: Methodology, Writing – review & editing, Funding acquisition, Supervision. DY L: Formal analysis, Writing – review & editing. FX W: Conceptualization, Formal analysis, Writing – original draft. ZP H: Resources, Writing – review & editing. Y G: Formal analysis, Writing – review & editing, Visualization. T J: Investigation, Data curation, Resources, Writing – review & editing, Supervision.

Corresponding authors

Correspondence to Yu Gu or Wei Wei.

Ethics declarations

Ethics approval and consent to participate

This study was approved by the Institutional Review Boards of the Guangzhou Institute of Cancer Research, the Affiliated Cancer Hospital, Guangzhou Medical University (IRB number 202111ZN), and the second Affiliated Hospital of Guangzhou University of Chinese Medicine (IRB number 202220001). Written informed consent was obtained from all patients. This prospective cohort study was registered with the Chinese Clinical Trial Registry as ChiCTR2100051170.

Consent for publication

Consent for publication was obtained from all authors.

Competing interests

The authors declare no competing interests.

Additional information

Publisher’s Note

Springer Nature remains neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Supplementary Information


Additional file 1: Supplementary Digital Fig. S1.Features were selected using the LASSO binary logistic regression model. (a) The LASSO model’s parameter selection used tenfold cross-validation with the minimum criterion; (b) Log (Lambda) values of the 25 features in the LASSO model. LASSO, least absolute shrinkage and selection operator.


Additional file 2: Supplementary Digital Fig. S2. Calibration plots in the development (a) and external validation cohorts (b).


Additional file 3: Supplementary Digital Fig. S3. Receiver operating characteristic (ROC) curve of internal validation, generated from 1000 bootstrap resampling repetitions. AUC, area under the ROC curve

12877_2025_5791_MOESM4_ESM.docx

Additional file 4: Supplementary Digital Content S1 Protocol deviations Supplementary. Digital Content S2a Case report form Supplementary. Digital Content S2b Definitions of predictor variables Supplementary. Digital Content S3 Definition of outcomes

12877_2025_5791_MOESM5_ESM.docx

Additional file 5: Supplementary Digital Table S1 Summary of missing predictor variables. Supplementary Digital Table S2 Description of the development and validation cohorts. Supplementary Digital Table S3 Development of postoperative pulmonary complications in the development and validation cohorts. Supplementary Digital Table S4 Variables entered into LASSO regression by univariable logistic regression. Supplementary Digital Table S5 Variance inflation factors (VIF) values of predictor variables. Supplementary Digital Table S6 Variables unrelated to the presence of PPCs by univariable logistic regression. Supplementary Digital Table S7 Characteristics of postoperative pulmonary complications and mortality according to the type of thoracic surgery.
